Chatbot Store on Facebook Messenger

2.SHOPLINE_Support_Social-Commerce.pngAs your business grows, you may need to spend a considerable amount of time to handle increasing customers' inquiries on a daily basis. Shoppers, especially new potential ones, always have similar questions about delivery and product details before they place their first orders.

With this feature, this kind of frequently asked questions can be handled by a bot on Messenger and shoppers' inquiries can be attended to 24/7, even outside of business hours.

Besides, integrating Chatbot Store on Messenger can also be a new channel for product exposure. You can set up buttons to direct shoppers to browse more on your online shop; or even allow them to browse your products on Messenger directly, enjoying a simpler and smoother shopping experience.

  1. Connect to Facebook fan page
  2. Set up Chatbot Store
  3. On Facebook Messenger for Shoppers
  4. Default Script - Exploring Products

Pre-requisite for this feature: Connect to Facebook fan page

If you have not connected your Facebook fan page on Admin before, you should do it first following the steps below.
If you have already connected your fan page, you can jump to here and start setting up Chatbot Stores!

Step 1: Go to "Apps Store" and install "Facebook Integration"

This feature supports only specific plans. Applicable merchants can go to "Apps" >> "Apps Store". Find the app "Facebook Integration" and click `Install`. Then click `Go to Setting` to continue Step 2.



Step 2: Go to "Channel Integration" page to set up

Go to "Channel Integration" >> "Facebook" and click `Connect` to continue Step 3.


Step 3: Log into your Facebook account

Log into a Facebook account that contains the Facebook page you want to use to continue Step 4.


Step 4: Choose a fan page to connect

Click `Connect` on the fan pages you would like to connect with SHOPLINE and click `OK`.


Step 5: Allow permissions

Please keep the default permission settings, "Manage your Pages" and "Manage and access Page conversations in Messenger" should be enabled as below, and click `Done`



You will then see this message and click `OK`.


Step 6: Choose a Facebook page to connect again

Please choose a page that you want to connect for the features, "Order Update Notification", "Broadcast Center", "Persistent Menu" and "In-chat Shopping". Click `Connect` and `OK` to finish the connection.


After successfully connect to your fan page, you can now go set up Chatbots!

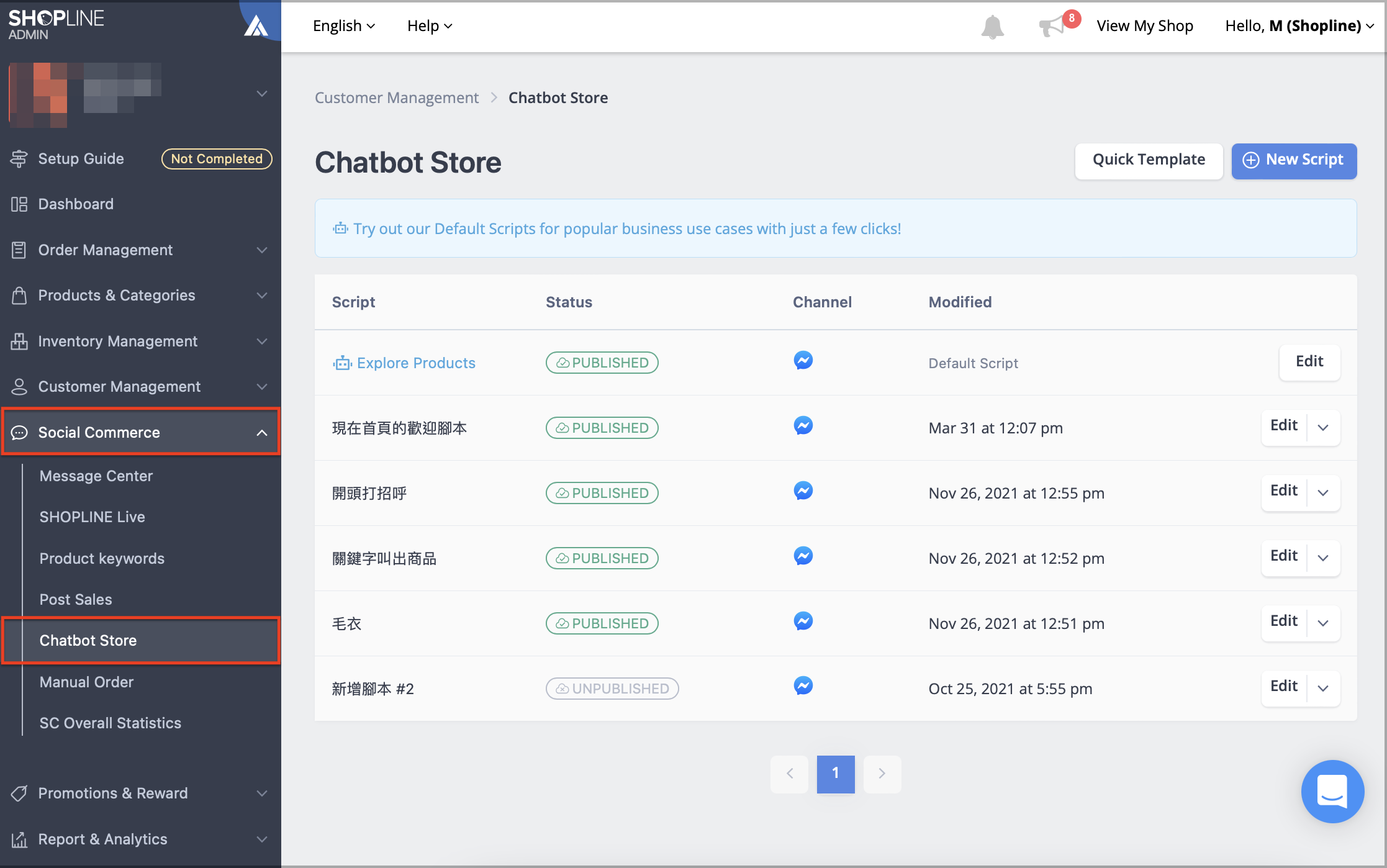

1. Index Page of Chatbot Store

You can go to "Social Commerce" or "Customer Management" > "Chatbot Store" to enter the index page of Chatbot Store.


On the page, you can see the following information of the chatbots you created:

  1. Script name
  2. Status of script
  3. Channel the script is published on
  4. Last modified time and person
  5. Unpublished Draft (yellow dot)

You can also perform the following actions on this page:

  1. create a new script
  2. enter the edit page of a Quick Template
  3. enter the edit page of a created script
  4. enter the edit page of a Default Script
  5. delete a script
  6. rename a script

2. Editing a Custom Script

You can click on `+ New Script` to enter the edit page of a script.

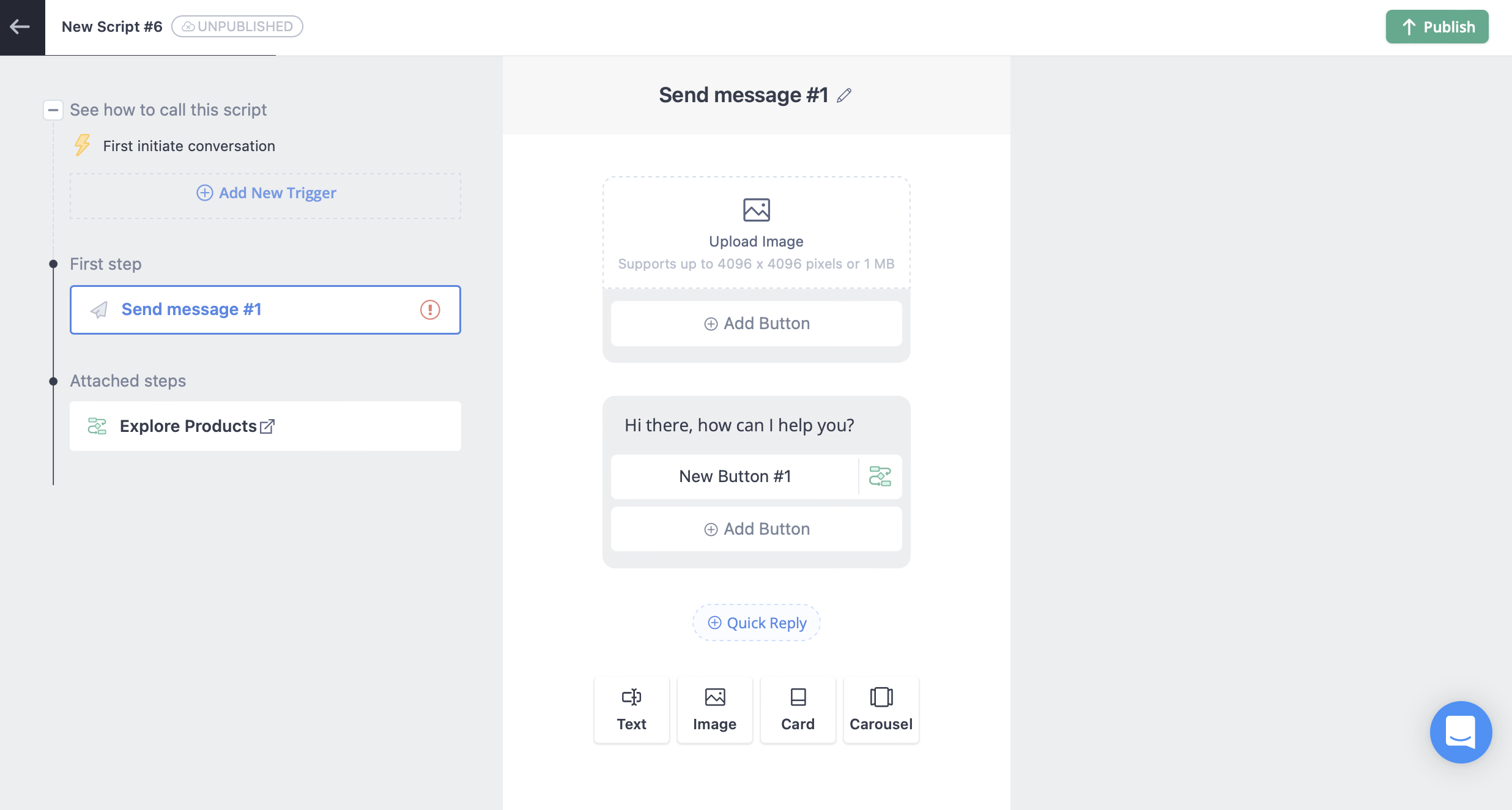

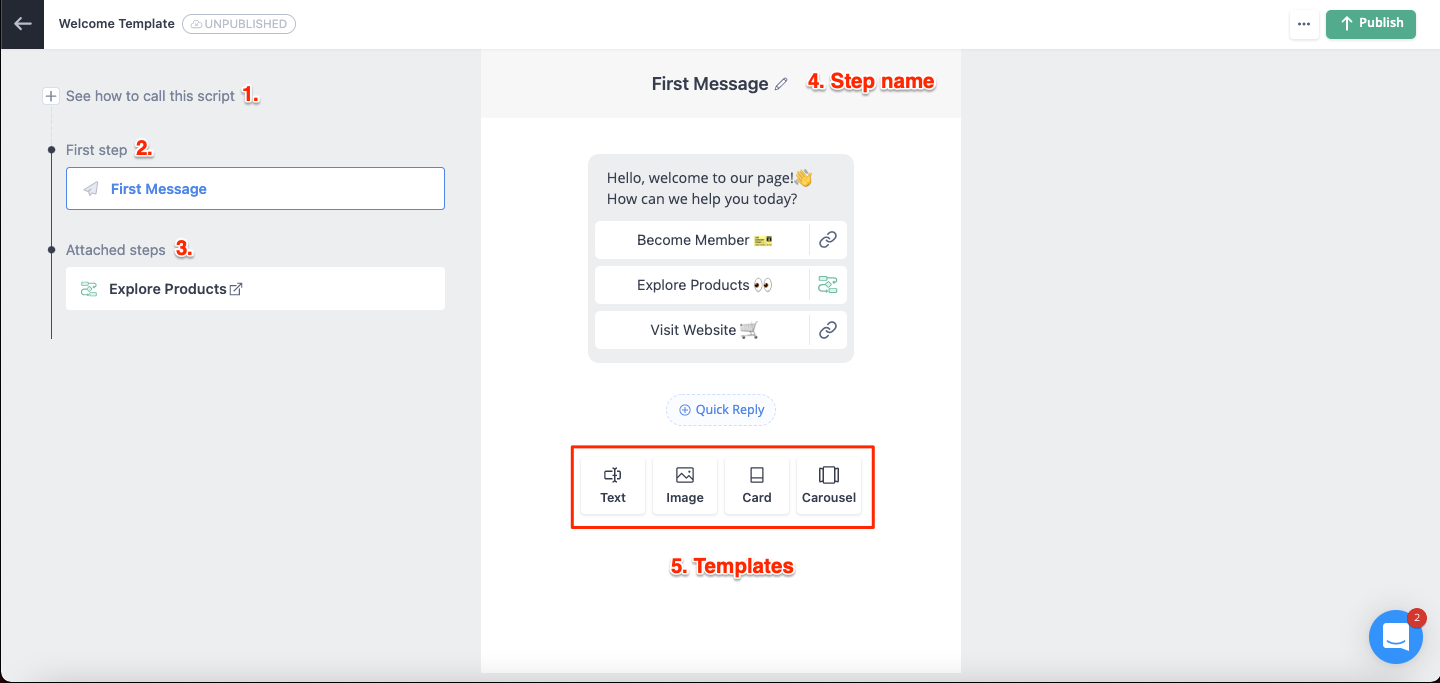

On the edit page, you will see 2 main panels:

(i) left panel, showing the overview of this script:

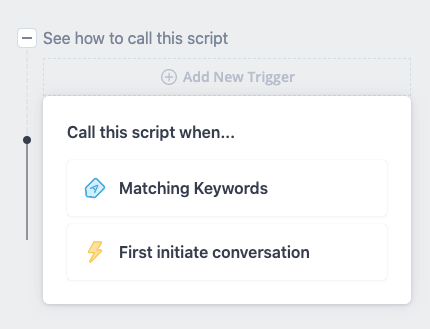

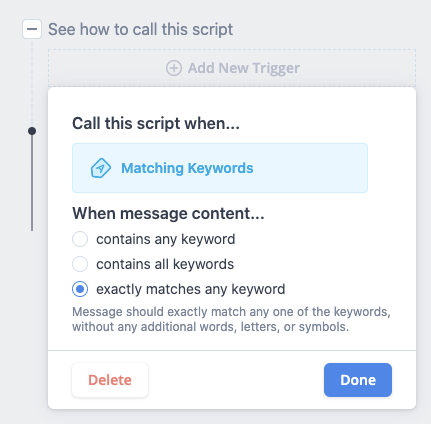

The "How to call the script" section lists all the trigger conditions for this script. There are two ways to trigger the script that you have edited before.

  • Matching keywords

The script will be triggered and shown to the customer when the customer enters a message that (i) contains any, (ii) all keywords, or (iii) exactly matches one of them. It is recommended to use the keywords based on customers’ commonly asked questions or products’ SEO keywords to ensure that customers can get the exact response they are looking for.


  • First initiate conversation

This script can be triggered if the customer is sending a message to your page for the first time.



the section below is the step flow of a script, you can then have a overview look of the script, knowing this script is composed of what steps

  • (Block 3) First Step, as the name suggests, contains the first messages shoppers will see after they send out the keywords to trigger the script
  • (Block 4) The attached Steps are all the other steps that are created in this script. A corresponding step-item will be created here when you add a 'Send Message' button or a 'Start another script` button

(ii) right panel, being the edit panel of steps: you can add templates and buttons to create more interactions with customers on Facebook Messenger.


Step Title

  • (Block 5) you can edit the step title at the top to distinguish each step. And the edited step title will be synced simultaneously to the step title on the left.

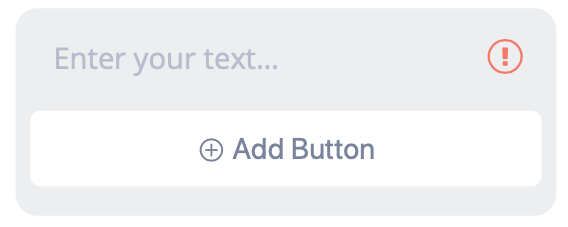

Text Template

  • in a text template, you can add a text message and at most 3 buttons that can perform different actions when shoppers press them.
  • (Block 6) clicking on the text widget will add a text template in the step.

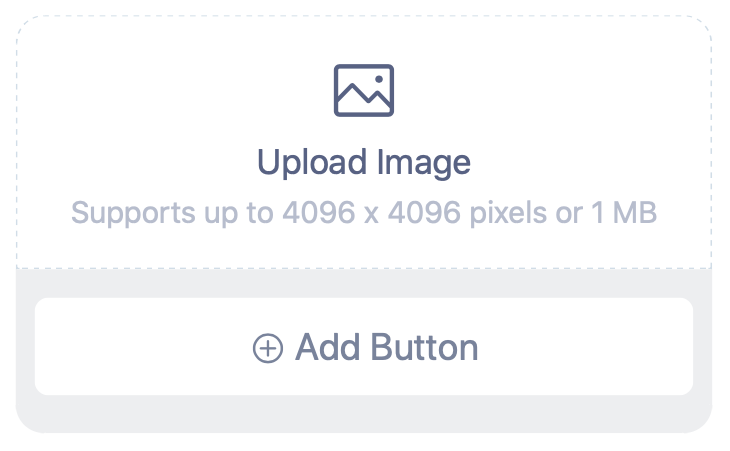

Image Template

  • in an image template, you can add an image and at most 3 buttons.
  • Supports images up to 4096 x 4096 pixels or 1 MB.

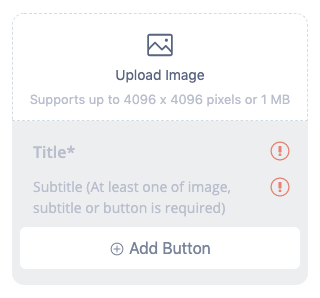

Card Template

  • in a card template, you can upload an image, add title, subtitle and at most 3 buttons.


  • (Block 7) clicking on the card widget will add a card template in the step.

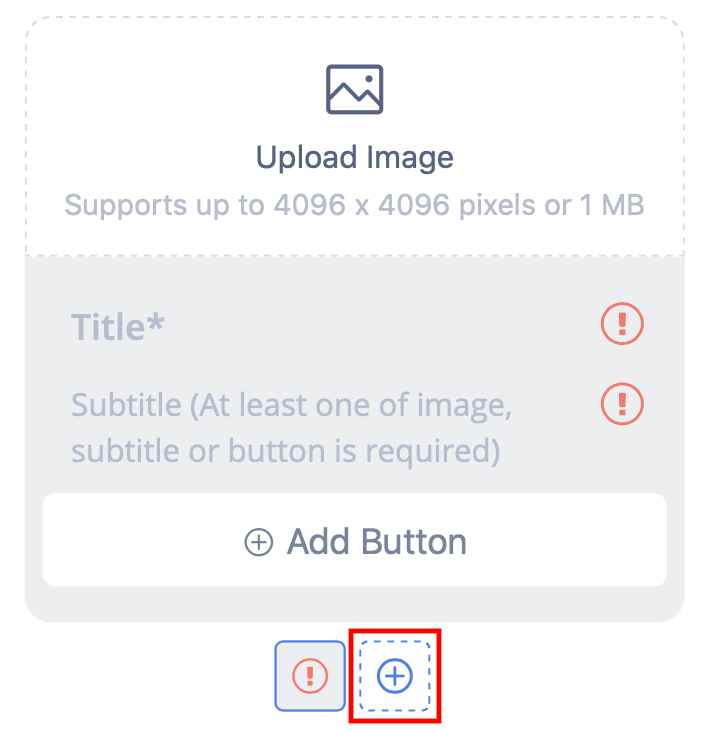

Carousel Template

  • in a carousel template, you can upload at most 10 card templates, and in each card template, you can upload an image, add title, subtitle and at most 3 buttons.
  • Press the "+" button below the carousel template to add more card templates.



Products Template

  • in a product template, you can upload at most 10 products.



Note: you can add at most 3 templates in a single step.

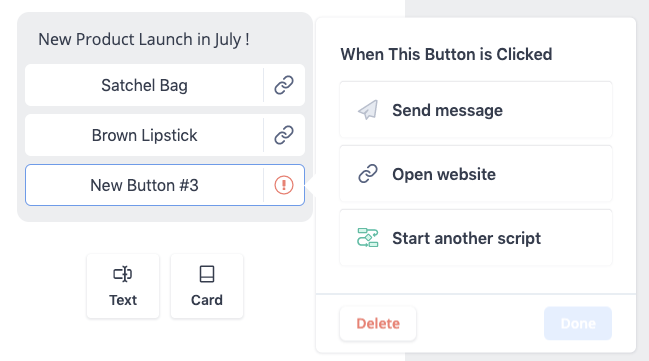

As you can see in the image below, there are 3 types of action a button can perform.

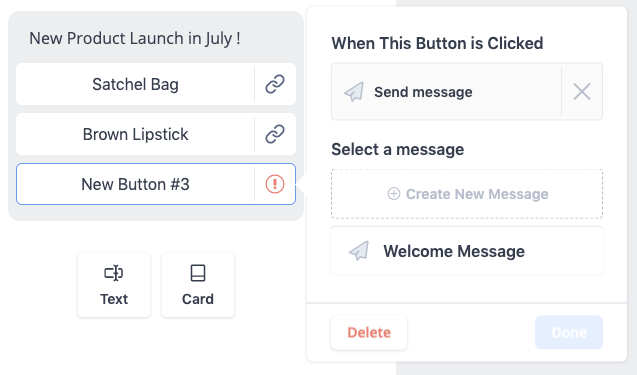

Send message

When shoppers click on a Message Button, they will trigger the messages in the linked step.

  • you can create a new step by clicking the ”Create New Message“ area and name the step here.
  • you can also choose to link the button to an existing step from the list below. (E.g. “Welcome Message” in the image above)

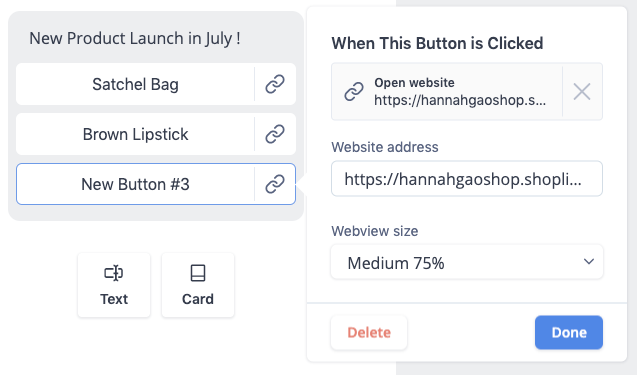

Open Website

  • you can put a URL in a button so that when shoppers click it, the website will be opened in the Messenger in-app browser.
  • you can also choose a suitable webview size of the in-app browser according to the website content; there are 3 options (i) Compact 50% (ii) Medium 70%, and (iii) Tall 90%.

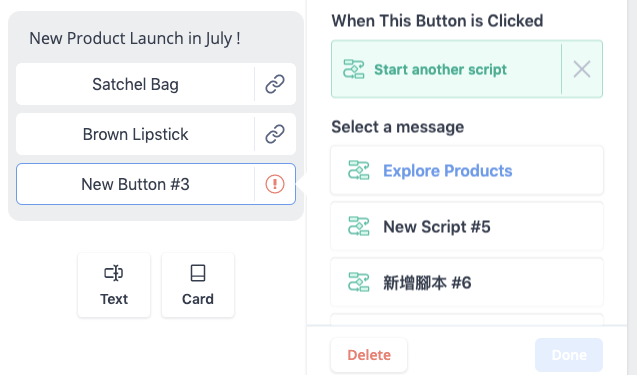

Start another script

  • you can also choose to link a button to an existing script so that shoppers can enter into another script for more details about certain information.

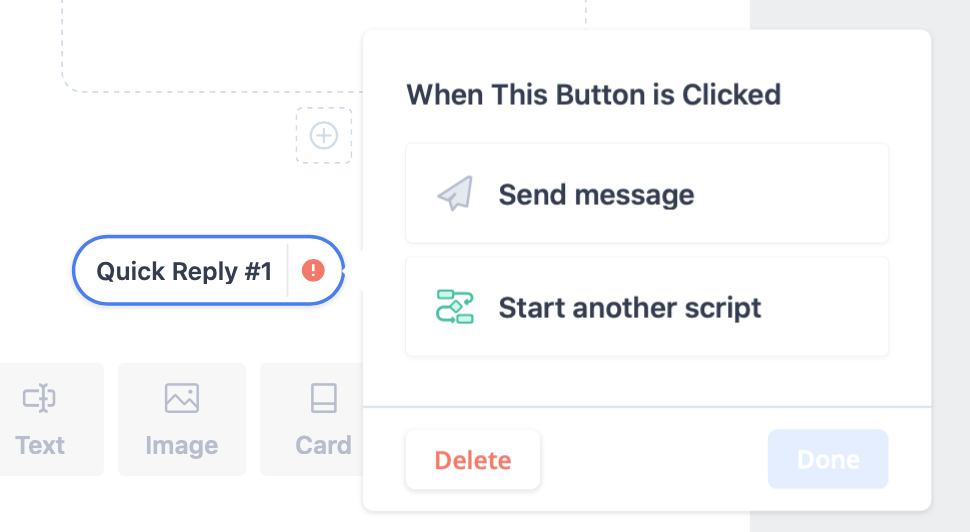

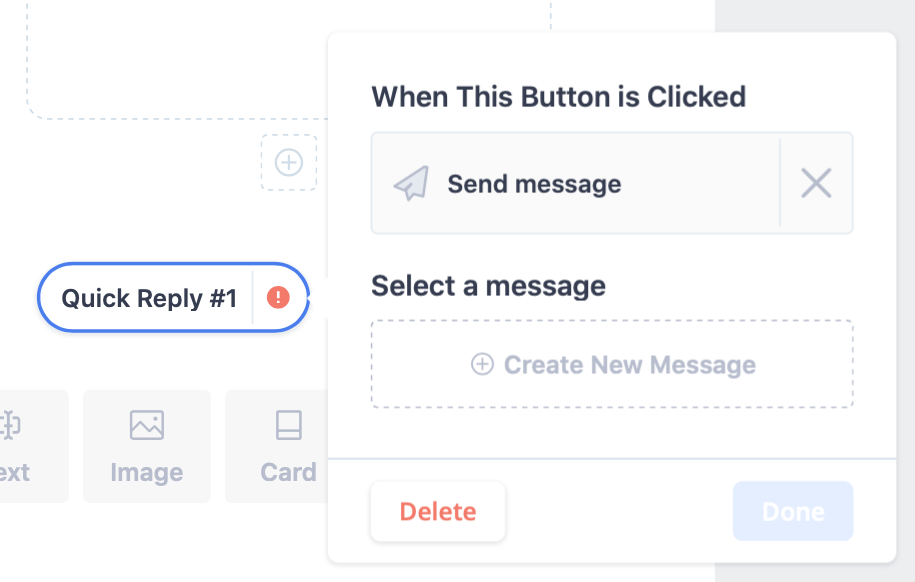

Quick Reply

As you can see in the image below, there are 2 types of action that can perform which are "Send message" and "Start another script".


Send message

When shoppers click on a "Quick Reply" Button, they will trigger the messages in the linked step.

  • you can create a new step by clicking the "Create New Message" area and name the step here.
  • you can also choose to link "Quick Reply" to an existing step from the list below.

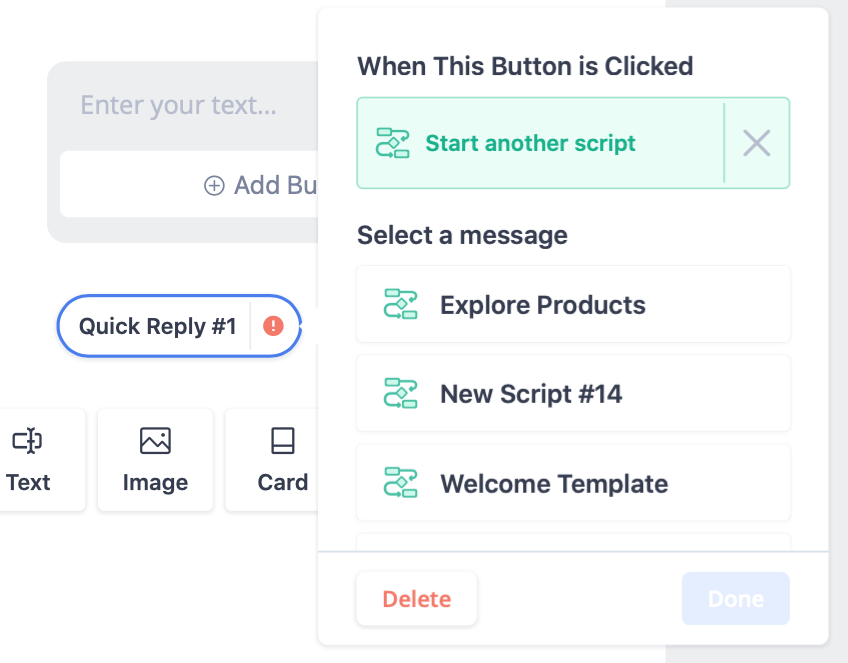

Start another script

  • you can also choose to link "Quick Reply" to an existing script so that shoppers can enter into another script for more details about certain information.



3. Publishing a Custom Script

Before you publish a script, make sure all the error icons are gone; it appears where the required fields are not filled.


  • Script Draft: Custom scripts support saving scripts. When editing the script content in the "Edit" mode and click the "Save" button, the system will save automatically it in the draft without affecting the currently published script.
  • Publish The Script: Once your custom script is ready-to-go, click the "Publish" button on the right top corner. Your script will then be able to be triggered on Facebook Messenger with the correct keywords.
    • (Block 1) There will be a status badge 'Published' shown next to the "Publish" button when the script is published successfully.
  • Unpublish The Script: When your script is published, there will be a "tool" icon next to the script title (Block 2). Clicking onto the "tool" icon, you will see the option of "Unpublish"; you can unpublish a script and re-publish it as you like.

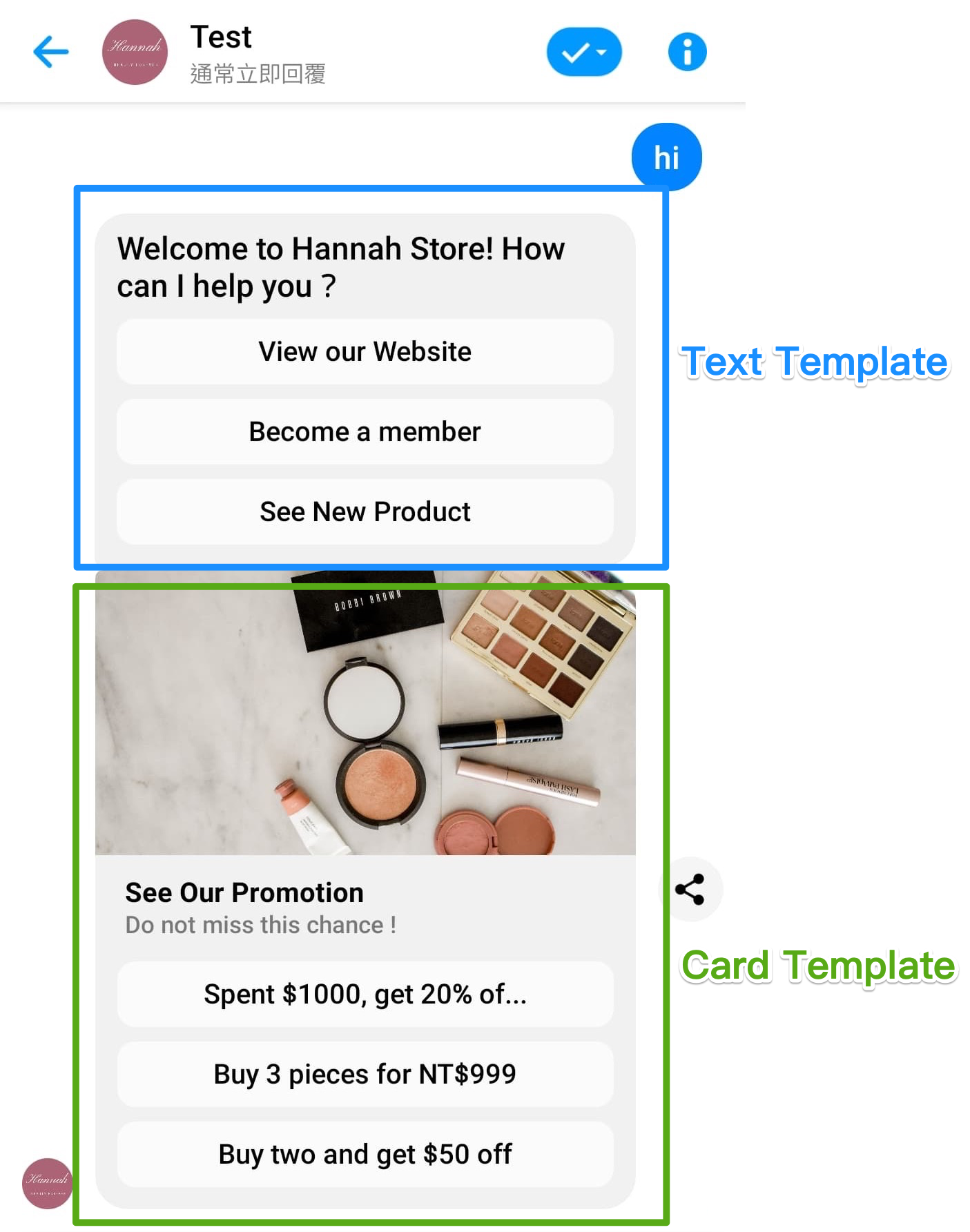

4. On Facebook Messenger for Shoppers

When shoppers send the correct keywords to your fan page, they will successfully trigger the messages in the First Step of the script.

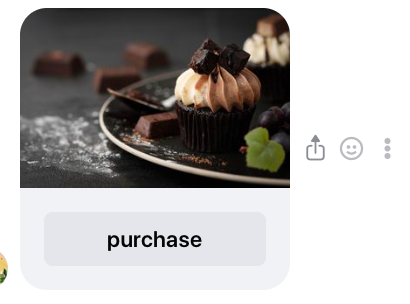

Image Template:


Carousel Template:



Product Template:

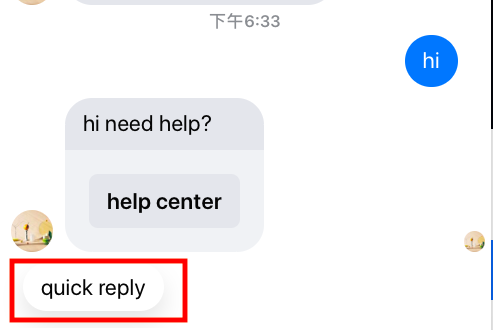

Quick Reply:



5. Default Script - Exploring Products

Other than the custom script, we also prepare some Default Scripts that can help with your business use case. You can set them up with just a few clicks. You can know more about it here



  1. Please note that once you publish a draft script it will replace the original. It is not possible to restore a previous version once a draft has been published
  2. Unpublishing a script may result in previously programmed responses not being triggered by new enquiries. It may also render links and other functions in older messages unusable.
